$67.49

Vizio V585-J01 Complete LED TV Repair Parts Kit (Serial LTCUE9LX) - V3

$67.49

Add a ShopJimmy Extended Warranty:

Ships same business day if ordered before 4pm CT!

69 Available | Ships same business day if ordered before 4pm CT!

180-Day Warranty

Ships same business day if ordered before 4pm CT!

We highly recommend matching your part number. Learn more

We have a repair tutorial video for this part. Watch it below!

Vizio V585-J01 Complete LED TV Repair Parts Kit (Serial LTCUE9LX) -V3

Vizio 756TXLCB02K042 Main Board for V585-J01
Vizio PLTVKJ291XADL Power Supply Board
Insignia Vizio CC580PV5D CC580PV7D T-Con Board

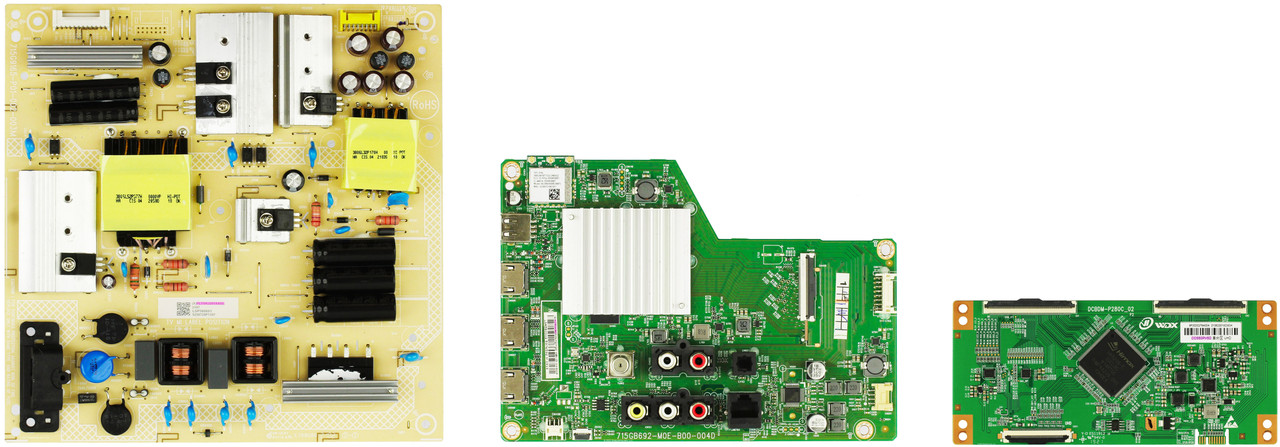

Parts Included

Vizio PLTVKJ291XADL
Vizio 756TXLCB02K042
Vizio CC580PV5D

Known Models

Brand	Models	Versions
NONE	NONE	NONE
Vizio	V585-J01	LTCUE9LX, LMXUE9LX, LTCHE9KX, LMXUE9SX, LMXUE9SY, 0751827, 4650627
Vizio	V655-J04	LBSFE4PZ

Warranty:

180-Day Warranty

Manufacturer Part Number:

Vizio 756TXLCB02K042

Manufacturer Part Number:

Vizio PLTVKJ291XADL

Manufacturer Part Number:

Vizio CC580PV5D

Manufacturer Part Number:

Vizio CC580PV7D

What is a TV repair kit?

TV repair kits typically contain every board in your TV (excluding LED strips). If you’re unsure of your diagnosis, you can order this kit and replace all of the boards in your TV.

Which symptoms does a TV repair kit fix in a TV?

• A TV repair kit can fix most symptoms in your TV, from no power to no video or audio to WiFi issues.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a TV repair kit?

It's easy! Once you match the part numbers on your boards with the part numbers listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the boards.
