Vizio V585-G1 Complete LED TV Repair Parts Kit

SKU:
sj-KIT-V585-G1-K1
Was
$59.95
(You save $9.96)
$49.99
Was
$59.95
(You save $9.96)
$49.99
180-Day Warranty
Ships same business day if ordered before 4pm CT!
We highly recommend matching your part number. Learn more

❄ HOLIDAY SALE! SAVE 10% WITH THE CODE SJHOLIDAY24 ❄

These products also work for this item

 down facing arrow

These products
also work for
this item

right facing arrow
Insignia Vizio CV580U1-T01-CB-1 T-Con Board

Insignia Vizio CV580U1-T01-CB-1 T-Con Board

SKU: sj-CV580U1-T01-CB-1

$27.99
Ships same business day if ordered before 4pm CT!
238 Available
Vizio ADTVJ1818AB1 Power Supply Board

Vizio ADTVJ1818AB1 Power Supply Board

SKU: sj-ADTVJ1818AB1

Was
$37.70
$23.99
Ships same business day if ordered before 4pm CT!
17 Available
PLEASE NOTE: This kit is compatible with TVs with serial number beginning with:
LTCHQRAV
LTCHQRBV
LTMHQRAV
LTCHQRBW

Vizio V585-G1 (LTCHQRAV LTCHQRBV LTMHQRAV Serial) Complete LED TV Repair Parts Kit

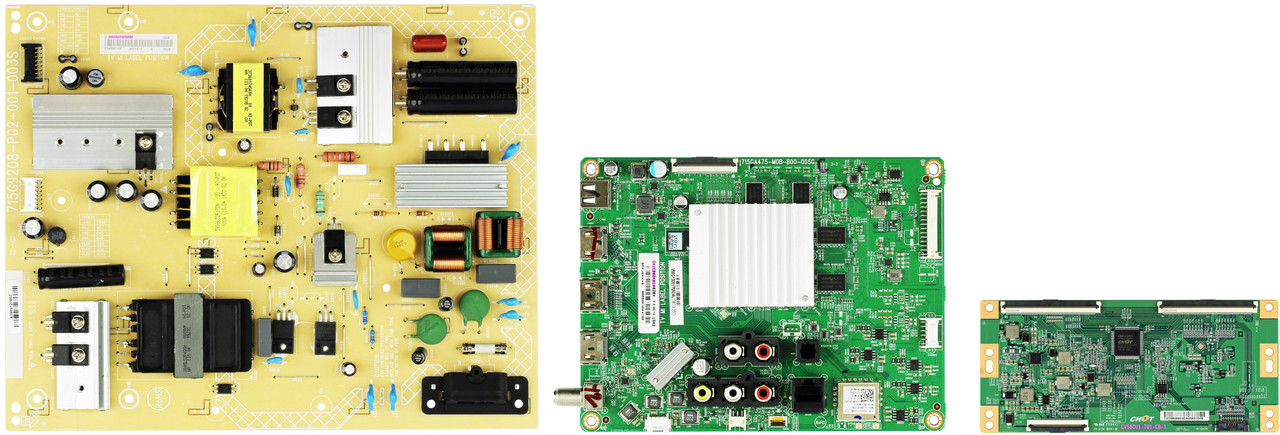

Parts Included

  • Vizio 756TXJCB02K014 Main Board for V585-G1 (LTCHQRAV Serial) (sj-756TXJCB02K014)
  • Vizio ADTVJ1818AB1 Power Supply Board (sj-ADTVJ1818AB1)
  • Insignia Vizio CV580U1-T01-CB-1 T-Con Board (sj-CV580U1-T01-CB-1)

Known Models

BrandModelsVersions
VIZIOV585-G1(LTCHQRAV,LTCHQRBV,LTMHQRAV,LTCHQRBW,LTCHQRAV,
Part Number:
KIT-V585-G1-K1
Warranty:
180-Day Warranty
Manufacturer Part Number 2:
Vizio ADTVJ1818AB1
Manufacturer Part Number 3:
Vizio CV580U1-T01-CB-1
Models:
V585-G1
Part Type:
Complete Parts Kit
Part Usage:
LED/LCD
Brands:
vizio
Panel Number:
TPT580B5-U1T01.D REV:S01S
Panel Number:
CV580U1-T01 Rev:01
Manufacturer Part Number 1:
Vizio 756TXJCB02K014|Vizio 756TXJCB02K016

What is a TV repair kit?

TV repair kits typically contain every board in your TV (excluding LED strips). If you’re unsure of your diagnosis, you can order this kit and replace all of the boards in your TV.

Which symptoms does a TV repair kit fix in a TV?

•  A TV repair kit can fix most symptoms in your TV, from no power to no video or audio to WiFi issues.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a TV repair kit?

It's easy! Once you match the part numbers on your boards with the part numbers listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the boards.
