Vizio M656-H4 (LBPFB6KW Serial) Complete LED TV Repair Parts Kit

Vizio M656-H4 (LBPFB6KW Serial) Complete LED TV Repair Parts Kit

SKU:: sj-KIT-M656-H4-K1

$119.99

Vizio M656-H4 (LBPFB6KW Serial) Complete LED TV Repair Parts Kit

$119.99

Enter your email address to be notified when this item is back in stock!

Available Out of Stock | Ships same business day if ordered before 4pm CT!

180-Day Warranty

We highly recommend matching your part number. Learn more

We have a repair tutorial video for this part. Watch it below!

PLEASE NOTE: This kit is compatible with M656-H4 TVs with serial number beginning with LBPFB6KW.

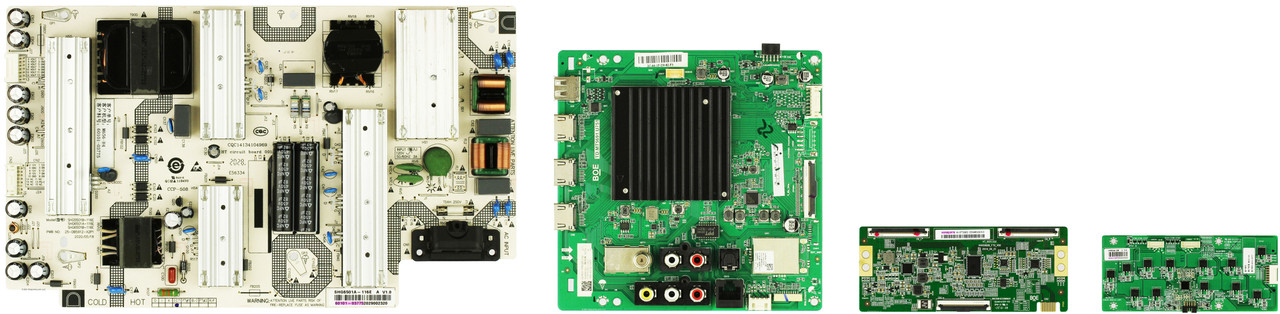

Vizio M656-H4 (LBPFB6KW Serial) Complete LED TV Repair Parts Kit

Vizio 21201-02409 Main Board
Vizio 60101-03775 Power Supply
Vizio HV650QUBF70 T-Con
Vizio 60101-03777 LED Driver

Parts Included

Philips HV650QUBF70
Vizio 21201-02409
Vizio 60101-03775
Vizio 60101-03777

Known Models

Brand	Models	Versions
Vizio	M656-H4	LBPFB6KW

Warranty:

180-Day Warranty

Manufacturer Part Number:

Vizio 21201-02409

Manufacturer Part Number:

Vizio 60101-03775

Manufacturer Part Number:

Vizio HV650QUBF70

Manufacturer Part Number:

Vizio 60101-03777

What is a TV repair kit?

TV repair kits typically contain every board in your TV (excluding LED strips). If you’re unsure of your diagnosis, you can order this kit and replace all of the boards in your TV.

Which symptoms does a TV repair kit fix in a TV?

• A TV repair kit can fix most symptoms in your TV, from no power to no video or audio to WiFi issues.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a TV repair kit?

It's easy! Once you match the part numbers on your boards with the part numbers listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the boards.
