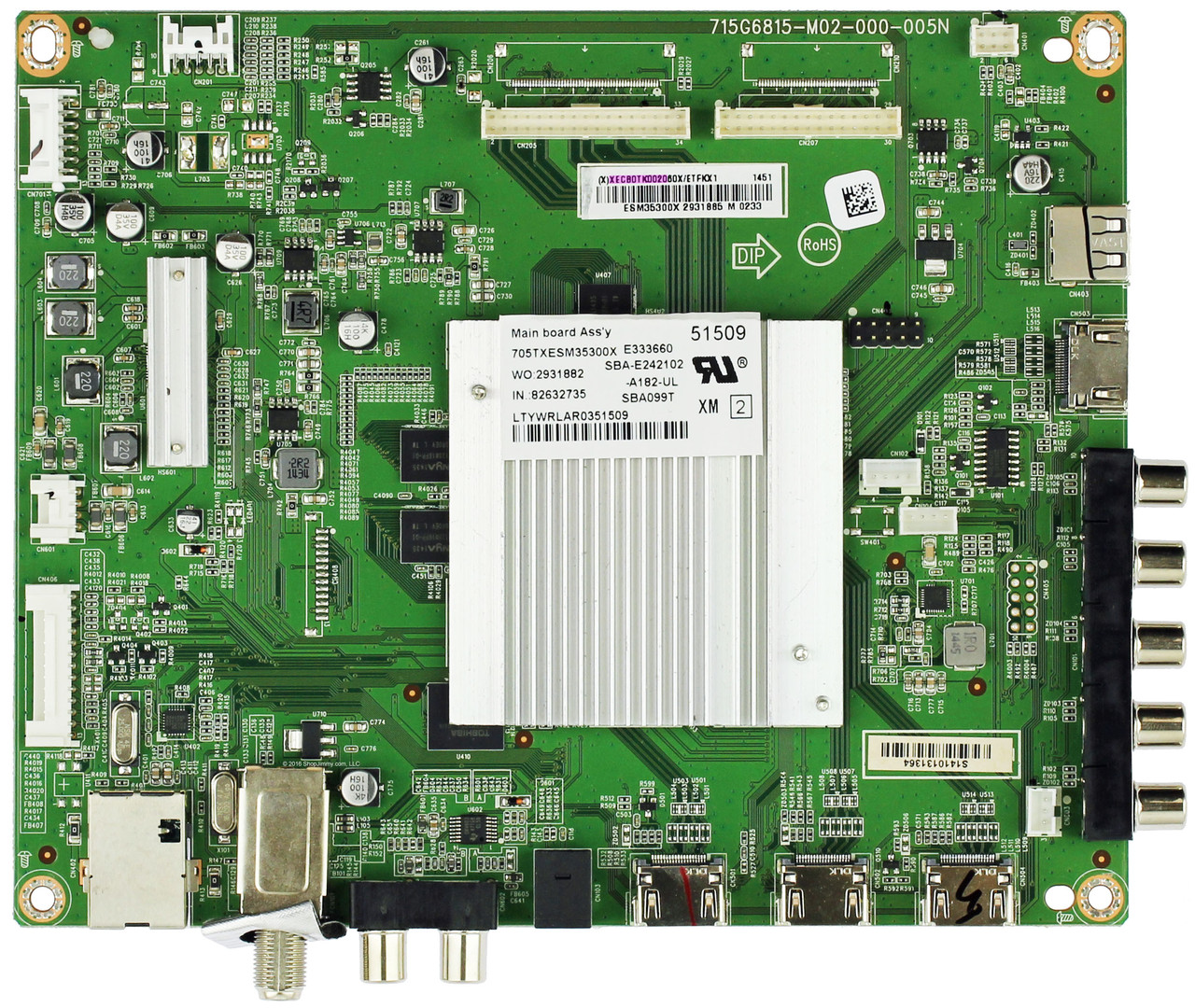

Vizio 756TXECB0TK0020 Main Board for M502I-B1 (LTYWRLAR Serial)

SKU:
sj-756TXECB0TK0020
Was
$129.94
(You save $59.95)
$69.99
Was
$129.94
(You save $59.95)
$69.99
180-Day Warranty
Ships same business day if ordered before 4pm CT!
We highly recommend matching your part number. Learn more

FALL SALE! SAVE 10% ON THIS ITEM TODAY WITH THE CODE SJFALL10

These products also work for this item

 down facing arrow

These products
also work for
this item

right facing arrow
PLEASE NOTE: This board is compatible with TVs with serial number beginning with LTYWRLAR.

Partial part number (XECB0T0020) can be found on a sticker on board.


Known Models

BrandModelsVersions
VIZIOM502I-B1LTYWRLAR
Part Number:
756TXECB0TK0020
Warranty:
180-Day Warranty
Board Number:
(X)XECB0TK002060X| 715G6815-M02-000-005N| 705TXESM35300X
Harmonized Code:
8529.90.06.00
Manufacturer Part Number 1:
Vizio 756TXECB0TK0020
Notes:
ShopJimmy recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Part Type:
Main Board
Part Usage:
LED/LCD
Models:
M502I-B1
Brands:
vizio

Videos

What is a main board?

The main board is basically the “brains” of your TV and controls everything, from the audio to video streams. All of the user data and settings are also stored on the main board.

Which symptoms does a main board fix in a TV?

•  If your TV doesn’t turn on, it could be the main board. If your TV turns on but has no video and/or no audio, it could also be the main board.

•  If one HDMI input works but others don’t work, it could be the main board.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a main board?

It's easy! Once you match the part number on your main board with the part number listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the board.
