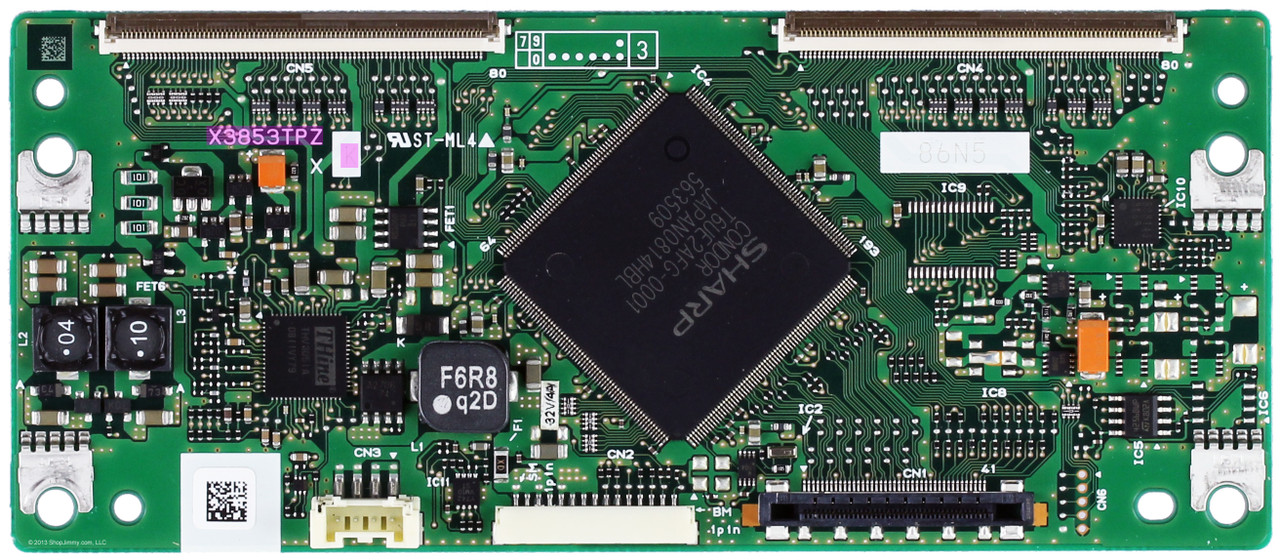

Sharp CPWBX3853TPZK T-Con Board

SKU:
sj-CPWBX3853TPZK
Was
$17.04
(You save $11.44)
$5.60
Was
$17.04
(You save $11.44)
$5.60
180-Day Warranty
Ships same business day if ordered before 4pm CT!
We highly recommend matching your part number. Learn more

❄ HOLIDAY SALE! SAVE 10% WITH THE CODE SJHOLIDAY24 ❄

K is stamped on the board.

IMPORTANT: Horizontal lines on the screen are virtually NEVER caused by a bad T-con board. Horizontal lines indicate a defective LCD panel (screen).


Known Models

BrandModelsVersions
SANYODP46848
SHARPLC-46LE810UN
LC-46SB54U,
LC-46SB57UN
LC-C4654U
Part Number:
CPWBX3853TPZK
Warranty:
180-Day Warranty
Board Number:
X3853TPZ| X3853TPZX| X3853TPZK| X3853TPZXK
Harmonized Code:
8529.90.06.00
Manufacturer Part Number 1:
Sharp CPWBX3853TPZK
Models:
LC-46SB57UN
Models:
LC-46SB54U
Models:
LC-46LE810UN
Models:
DP46848
Models:
LC-C4654U
Notes:
ShopJimmy recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Part Type:
T-Con
Part Usage:
LCD
TV Panel Manufacturer:
Sharp
TV Sizes:
46
Panel Number:
LK460D3LW10Z
Brands:
sanyo
Brands:
sharp

Videos

What is a T-con board?

A T-con board — short for “timing control board” or “timing controller” — is found in LED and LCD TVs. This board converts the video signal from the main board and sends it directly to the screen to display the signal in the correct order and at the correct spot on the screen.

Which symptoms does a T-con board fix in a TV?

•  If your TV has no video, then the T-con board could be bad.

•  If your TV only has video on a fourth or half of the screen, then the T-con board could be bad.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a T-con board?

It's easy! Once you match the part number on your T-con board with the part number listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the board.

Make an Offer on this Item!

Please enter your email address and a fair price for this item. We will evaluate your offer within one business day and reply via email. Thanks!

$

Please note that a ShopJimmy Extended Warranty can’t be included in an offer price or added to an accepted/countered offer. Thanks for your understanding.

Need more quantity?

Please add your email and the quantity you need below. While we can’t guarantee that we’ll be able to get our hands on this amount, we’ll do our best and reply to you as soon as we can. Thanks!

We recommend matching the part number on your original part with the part number listed on this page to ensure compatibility.

While matching your model number is a great start, many models use variations of each part and they're not always interchangeable.

We include brief instructions in red text on some listings (also displayed below without the red font). Please look for these instructions to confirm any important info that you'll need to identify on your original part. Additionally, we highlight the part number in our photos.

Please don't hesitate to contact us with any questions. We're here to help!

K is stamped on the board.

IMPORTANT: Horizontal lines on the screen are virtually NEVER caused by a bad T-con board. Horizontal lines indicate a defective LCD panel (screen).
