Samsung UN48J5000AFXZA (Version ED02) Complete TV Repair Parts Kit w/LED Strips

SKU:
sj-Kit-UN48J5000AFXZA-K5
$49.99
$49.99
180-Day Warranty
We highly recommend matching your part number. Learn more

FALL SALE! SAVE 10% ON THIS ITEM TODAY WITH THE CODE SJFALL10

These products also work for this item

 down facing arrow

These products
also work for
this item

right facing arrow
Samsung BN44-00852A Power Supply Board

Samsung BN44-00852A Power Supply Board

SKU: sj-BN44-00852A

$23.99
Ships same business day if ordered before 4pm CT!
171 Available

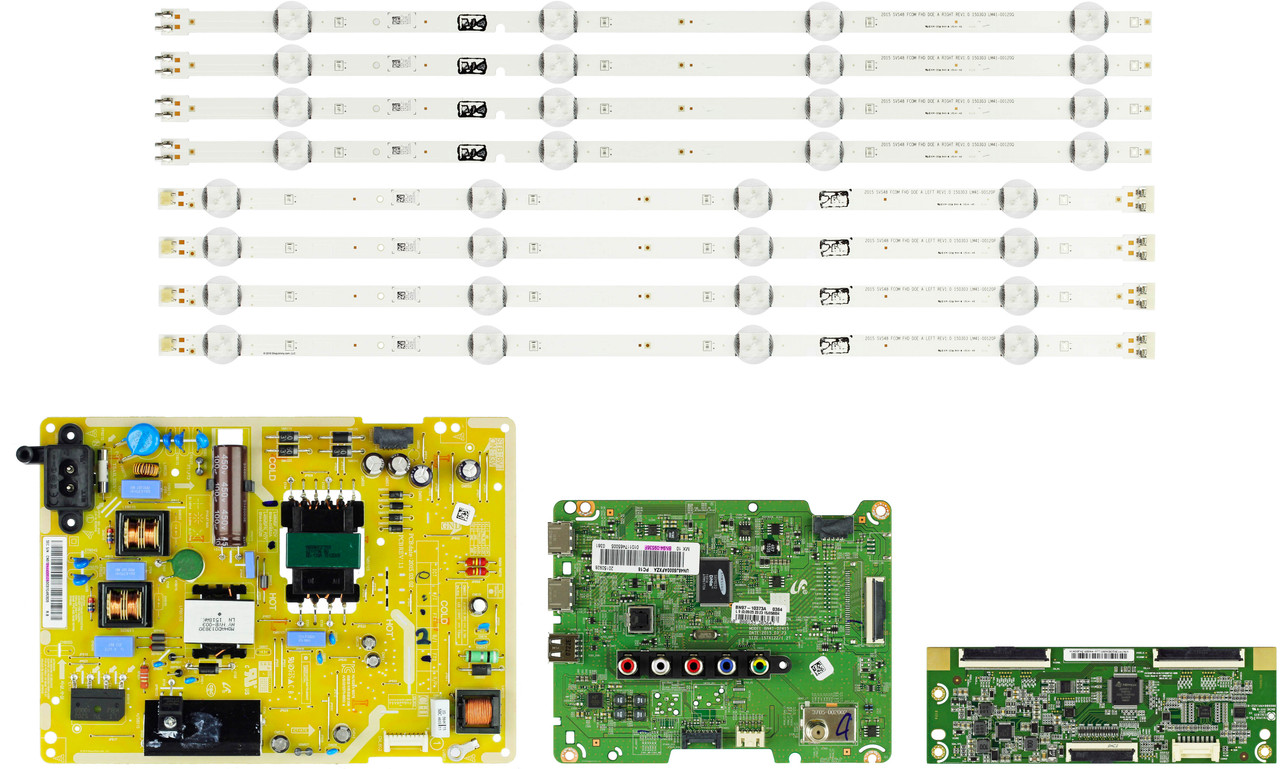

Includes complete set of boards and a brand new set of LED backlight strips.

PLEASE NOTE: This kit is compatible with TV version number ED02 (found on sticker on back of TV).---


Parts Included

  • Samsung BN94-09536F Main Board for UN48J5000AFXZA (Version ED02) (sj-BN94-09536F)
  • Samsung BN44-00852A Power Supply Board (sj-BN44-00852A)
  • Samsung UN48J5200AF UN48J5201AF UN48J520DAF UN48J6200AF LED Backlight Strips NEW (sj-BN96-37296A/BN96-37297A)
  • Samsung/Sanyo BN96-34103B T-Con Board (sj-BN96-34103B)

Known Models

BrandModelsVersions
SAMSUNGUN48J5000AFXZAED02
Part Number:
Kit-UN48J5000AFXZA-K5
Warranty:
180-Day Warranty
Brands:
samsung
Manufacturer Part Number 1:
Samsung BN94-09536F
Manufacturer Part Number 2:
Samsung BN44-00852A
Manufacturer Part Number 3:
Samsung BN96-34103B
Manufacturer Part Number 4:
Samsung BN96-37296A|Samsung BN96-37297A
Models:
UN48J5000AFXZA
Panel Number:
CY-JJ048BGEV1H
Part Type:
Complete Parts Kit
Part Usage:
LED/LCD
TV Panel Manufacturer:
Samsung

What is a TV repair kit?

TV repair kits typically contain every board in your TV (excluding LED strips). If you’re unsure of your diagnosis, you can order this kit and replace all of the boards in your TV.

Which symptoms does a TV repair kit fix in a TV?

•  A TV repair kit can fix most symptoms in your TV, from no power to no video or audio to WiFi issues.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a TV repair kit?

It's easy! Once you match the part numbers on your boards with the part numbers listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the boards.
