Samsung QN32LS03TBFXZA (Version BA01) LED TV Repair Parts Kit

SKU:
sj-KIT-QN32LS03TBFXZA-K1
$79.99
$79.99
180-Day Warranty
We highly recommend matching your part number. Learn more

❄ HOLIDAY SALE! SAVE 10% WITH THE CODE SJHOLIDAY24 ❄

These products also work for this item

 down facing arrow

These products
also work for
this item

right facing arrow
Samsung BN81-16940A (44-9771240) T-Con Board

Samsung BN81-16940A (44-9771240) T-Con Board

SKU: sj-BN81-16940A

Was
$24.70
$11.99
Ships same business day if ordered before 4pm CT!
6 Available
PLEASE NOTE: This kit is compatible with TV version BA01 (found on sticker on back of TV).




Samsung BN94-15541T Main Board
Samsung BN81-16940A HV320FHB-N10 T-Con
Samsung BN59-01333A WiFi

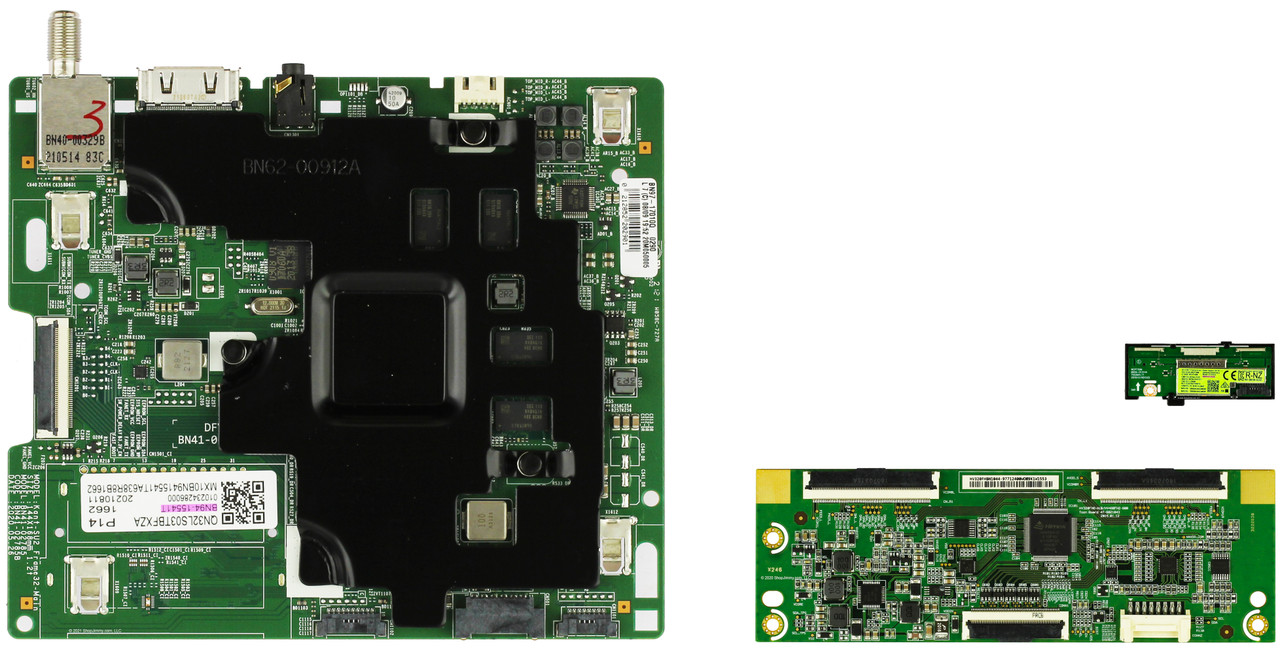

Parts Included

  • Samsung BN81-16940A (44-9771240) T-Con Board (sj-BN81-16940A)
  • Samsung BN59-01333A (WCP730M) Wi-Fi and Bluetooth Wireless Module (sj-BN59-01333A)
  • Samsung BN94-15541T Main Board for QN32LS03TBFXZA (Version BA01) (sj-BN94-15541T)

Known Models

BrandModelsVersions
SAMSUNGQN32LS03TBFXZABA01,BG04
Part Number:
KIT-QN32LS03TBFXZA-K1
Warranty:
180-Day Warranty
Brands:
samsung
Manufacturer Part Number 1:
Samsung BN94-15541T
Manufacturer Part Number 2:
Samsung BN81-16940A|Samsung HV320FHB-N10
Manufacturer Part Number 3:
Samsung BN59-01333A
Models:
QN32LS03TBFXZA
Part Type:
Complete Parts Kit
Part Usage:
LED/LCD

What is a TV repair kit?

TV repair kits typically contain every board in your TV (excluding LED strips). If you’re unsure of your diagnosis, you can order this kit and replace all of the boards in your TV.

Which symptoms does a TV repair kit fix in a TV?

•  A TV repair kit can fix most symptoms in your TV, from no power to no video or audio to WiFi issues.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a TV repair kit?

It's easy! Once you match the part numbers on your boards with the part numbers listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the boards.
