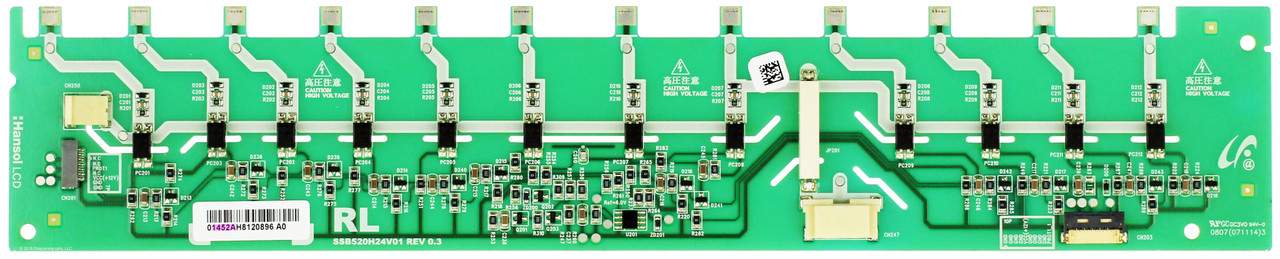

Samsung LJ97-01452A (SSB520H24V01) Backlight Inverter RL

SKU:
sj-LJ97-01452A
$15.70
(You save $5.31)
$10.39
$15.70
(You save $5.31)
$10.39
180-Day Warranty
We highly recommend matching your part number. Learn more

FALL SALE! SAVE 10% ON THIS ITEM TODAY WITH THE CODE SJFALL10

Partial part number (1452A) can be found on the sticker.


Known Models

BrandModelsVersions
SAMSUNGLN52A530P1FXZA
LN52A540P2FXZA
LN52A550P3FXZA
LN52A580P6FXZA
LN52A650A1FXZA
LN52A750R1FXZA
LN52B530P7FXZA
Part Number:
LJ97-01452A
Warranty:
180-Day Warranty
Board Manufacturer:
Hansol LCD
Board Number:
SSB520H24V01
Harmonized Code:
8504.40.95.70
Notes:
ShopJimmy recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Part Type:
Backlight Inverter
TV Panel Manufacturer:
Samsung
TV Sizes:
52
Models:
LN52A530P1FXZA
Models:
LN52A540P2FXZA
Models:
LN52A550P3FXZA
Models:
LN52A580P6FXZA
Models:
LN52A650A1FXZA
Models:
LN52A750R1FXZA
Models:
LN52B530P7FXZA
Panel Number:
LTF520HB03|LTF520HE01|LTF520HB01
Brands:
samsung

Videos

What is a backlight inverter?

Backlight inverters are found in older, CCFL style TVs only. These boards convert low voltage power from the power supply board and send out high voltage power to the fluorescent tubes behind the LCD screen. These tubes then light up the screen.

Which symptoms does a backlight inverter fix in a TV?

•  If you see very dim video or no video on the screen, but you know your TV has power and is on, then your backlight inverter(s) could be bad.

*These are helpful tips to get you started and donā€™t represent accurate diagnoses for every TV model and failure. If youā€™re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a backlight inverter?

It's easy! Once you match the part number on your backlight inverter(s) with the part number listed on this page to confirm compatibility, youā€™ll just need a screwdriver and the ability to remove the back of your TV and replace the board(s).
