Samsung BN96-16510C (LJ92-01796C) X-Main Board

SKU:
sj-BN96-16510C
Was
$90.23
(You save $56.62)
$33.61
Was
$90.23
(You save $56.62)
$33.61
180-Day Warranty
We highly recommend matching your part number. Learn more

FALL SALE! SAVE 10% ON THIS ITEM TODAY WITH THE CODE SJFALL10

These products also work for this item

 down facing arrow

These products
also work for
this item

right facing arrow
You must upgrade the firmware on your TV after installing this part to avoid repeat failure. See below for more info.

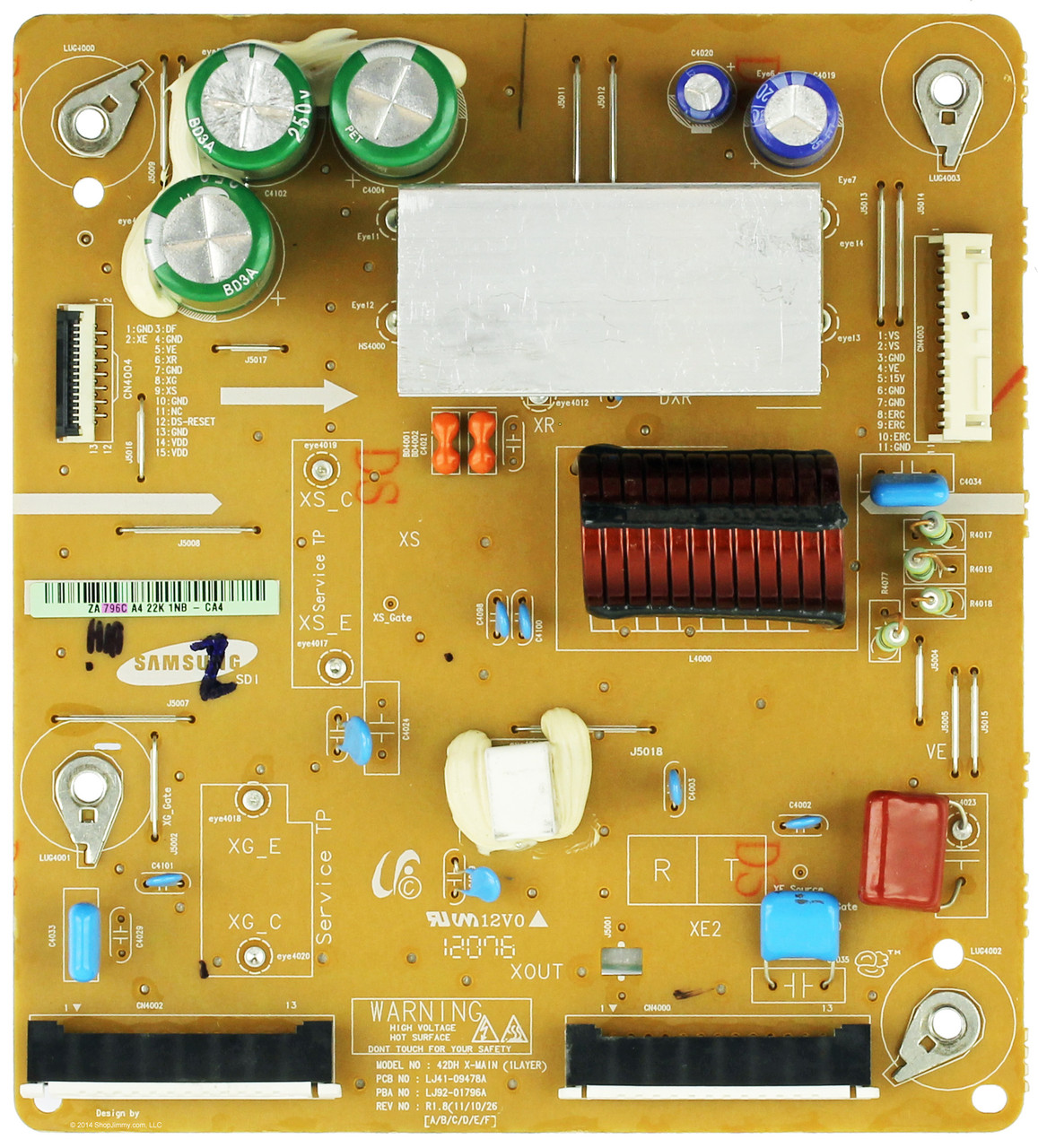

LJ92-01796C Partial PBA number (796C) can be found on the sticker.


Known Models

BrandModelsVersions
SAMSUNGPN43D430A3DXZAB104
PN43D440A5DXZA
PN43D450A2DXZA
PN43D490A1DXZA
Models:
PN43D450A2DXZA
Models:
PN43D430A3DXZA
TV Sizes:
43
TV Panel Manufacturer:
Samsung
Models:
PN43D490A1DXZA
Models:
PN43D440A5DXZA
Part Number:
BN96-16510C
Warranty:
180-Day Warranty
Board Manufacturer:
Samsung
Harmonized Code:
8529.90.06.00
Manufacturer Part Number 1:
Samsung BN96-16510C
Notes:
ShopJimmy recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Part PBA Number:
LJ92-01796C
Part PCB Number:
LJ41-09478A
Part Type:
X-Sustain
Part Usage:
Plasma
Panel Number:
S42AX-YD15|S42AX-YB11
Brands:
samsung

Videos

What is an X-sustain board?

The X-sustain board is found in plasma TVs and drives all of the X-axis video signals to your TV screen and also discharges the video signal.

Which symptoms does an X-sustain board fix in a TV?

•  If your picture looks like images are blurring together or overlapping, then the Xsustain board could be bad.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace an X-sustain board?

While replacing the X-sustain board is pretty easy, you’ll want to be mindful not to tear the flat ribbon cables when connecting/disconnecting the board.
