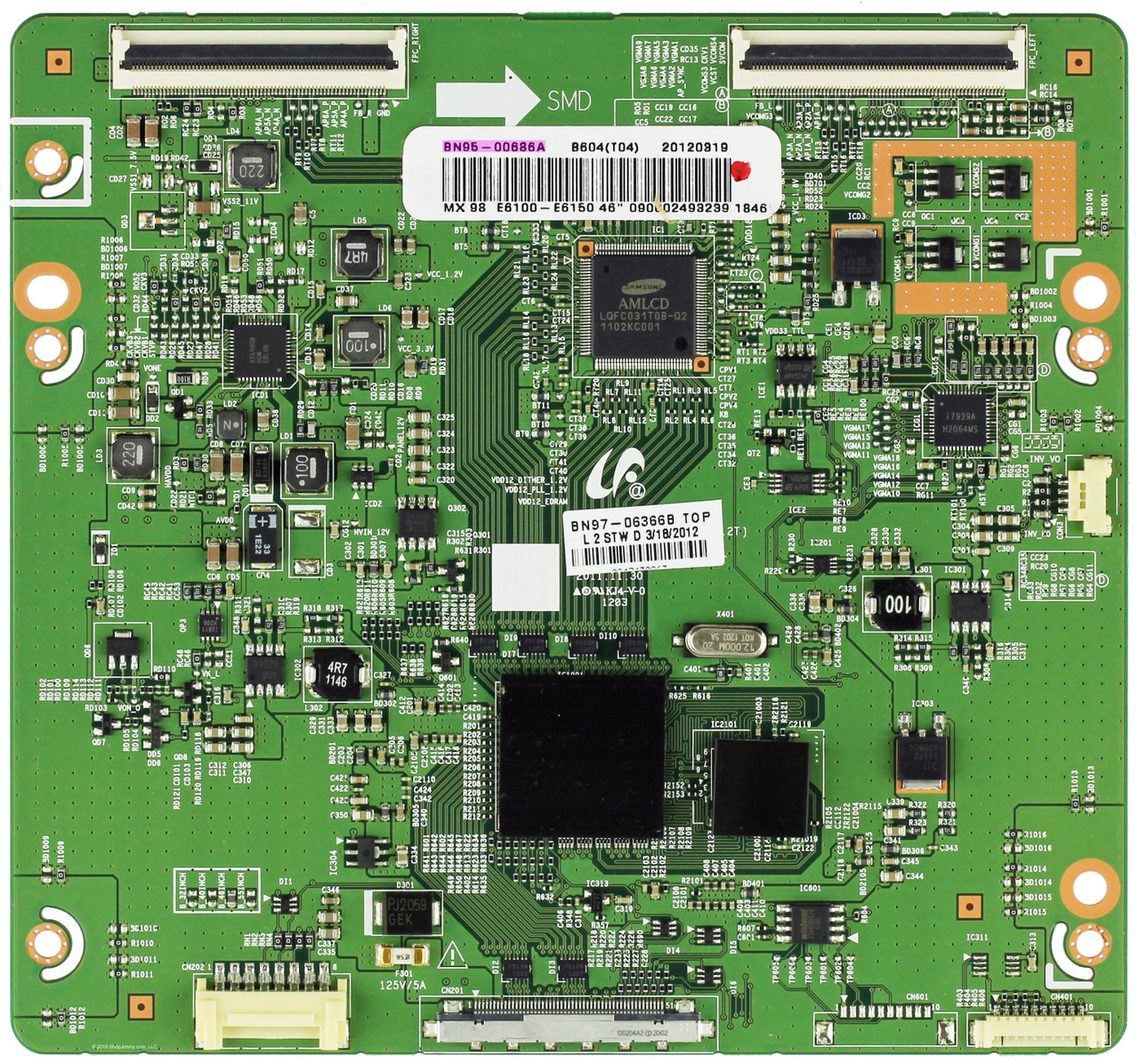

Samsung BN95-00686A (BN97-06366B, BN41-01788A) T-Con Board

Samsung BN95-00686A (BN97-06366B, BN41-01788A) T-Con Board

SKU:: sj-BN95-00686A

$39.59

Samsung BN95-00686A (BN97-06366B, BN41-01788A) T-Con Board

$39.59

Available Out of Stock | Ships same business day if ordered before 4pm CT!

180-Day Warranty

We highly recommend matching your part number. Learn more

We have a repair tutorial video for this part. Watch it below!

Part number can be found on a sticker. This board may or may not have a connector at the following locations: CON3, CN401, CN601, & CN202

IMPORTANT: Horizontal lines on the screen are virtually NEVER caused by a bad T-con board. Horizontal lines indicate a defective LCD panel (screen).

Known Models

Brand	Models	Versions
SAMSUNG	HG46NA790MFXZA	TS01
	UN46ES6003FXZA	TS01
	UN46ES6100FXZA	TS01
	UN46ES6150FXZA	TS01

Part Number:

BN95-00686A

Warranty:

180-Day Warranty

Board Number:

BN97-06366B|BN41-01788A

Harmonized Code:

8529.90.06.00

Manufacturer Part Number 1:

Samsung BN95-00686A

Part Type:

T-Con

Part Usage:

LED/LCD

TV Panel Manufacturer:

Samsung

Models:

HG46NA790MFXZA

Models:

UN46ES6003FXZA

Models:

UN46ES6100FXZA

Models:

UN46ES6150FXZA

Brands:

samsung

Panel Number:

LTJ460HJ08-V

Videos

What is a T-con board?

A T-con board — short for “timing control board” or “timing controller” — is found in LED and LCD TVs. This board converts the video signal from the main board and sends it directly to the screen to display the signal in the correct order and at the correct spot on the screen.

Which symptoms does a T-con board fix in a TV?

• If your TV has no video, then the T-con board could be bad.

• If your TV only has video on a fourth or half of the screen, then the T-con board could be bad.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a T-con board?

It's easy! Once you match the part number on your T-con board with the part number listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the board.

We recommend matching the part number on your original part with the part number listed on this page to ensure compatibility.

While matching your model number is a great start, many models use variations of each part and they're not always interchangeable.

We include brief instructions in red text on some listings (also displayed below without the red font). Please look for these instructions to confirm any important info that you'll need to identify on your original part. Additionally, we highlight the part number in our photos.

Please don't hesitate to contact us with any questions. We're here to help!
