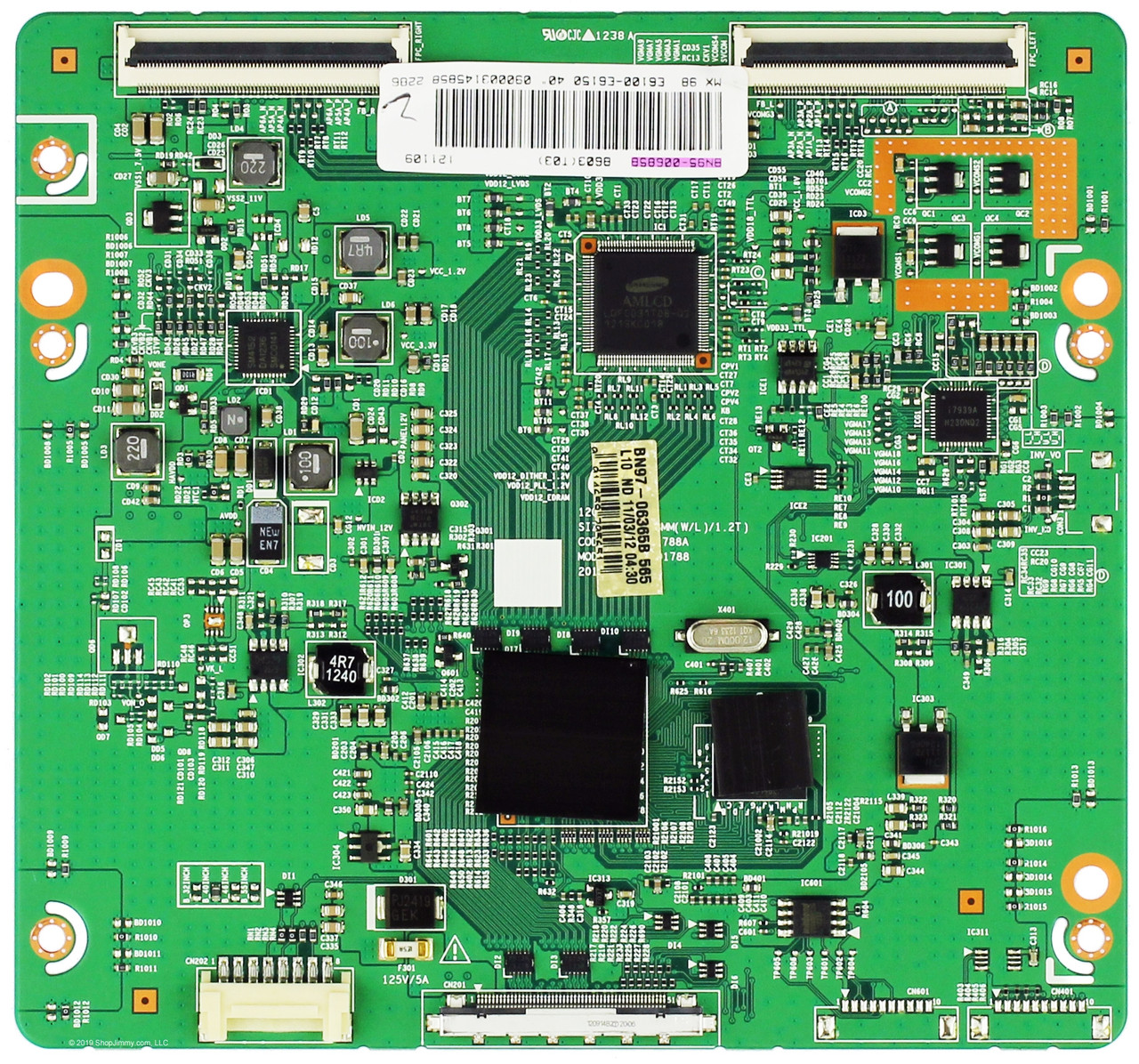

Samsung BN95-00685B T-Con Board

SKU:
sj-BN95-00685B
Was
$31.64
(You save $16.65)
$14.99
Was
$31.64
(You save $16.65)
$14.99
180-Day Warranty
Ships same business day if ordered before 4pm CT!
We highly recommend matching your part number. Learn more
Part number can be found on a sticker.

IMPORTANT: Horizontal lines on the screen are virtually NEVER caused by a bad T-con board. Horizontal lines indicate a defective LCD panel (screen).


Known Models

BrandModelsVersions
SAMSUNGHG40NA790MFXZATS01
UN40ES6003FXZATS01
UN40ES6100FXZA
UN40ES6150FXZATS01
Part Number:
BN95-00685B
Warranty:
180-Day Warranty
Board Number:
BN97-06365B|BN41-01788A
Manufacturer Part Number 1:
Samsung BN95-00685B
Notes:
ShopJimmy recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Part Type:
T-Con
TV Sizes:
40
Models:
HG40NA790MFXZA
Models:
UN40ES6003FXZA
Models:
UN40ES6100FXZA
Models:
UN40ES6150FXZA
Brands:
samsung

Videos

What is a T-con board?

A T-con board — short for “timing control board” or “timing controller” — is found in LED and LCD TVs. This board converts the video signal from the main board and sends it directly to the screen to display the signal in the correct order and at the correct spot on the screen.

Which symptoms does a T-con board fix in a TV?

•  If your TV has no video, then the T-con board could be bad.

•  If your TV only has video on a fourth or half of the screen, then the T-con board could be bad.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a T-con board?

It's easy! Once you match the part number on your T-con board with the part number listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the board.
