Philips 75PFL4756/F7 (XA1 serial) Complete LED TV Repair Parts Kit

Philips 75PFL4756/F7 (XA1 serial) Complete LED TV Repair Parts Kit

SKU:: sj-KIT-75PFL4756/F7-K1

$119.99

Philips 75PFL4756/F7 (XA1 serial) Complete LED TV Repair Parts Kit

$119.99

Add a ShopJimmy Extended Warranty:

Ships same business day if ordered before 4pm CT!

1 Available | Ships same business day if ordered before 4pm CT!

180-Day Warranty

Ships same business day if ordered before 4pm CT!

We highly recommend matching your part number. Learn more

We have a repair tutorial video for this part. Watch it below!

Compatible with 75PFL4756/F7 TVs with serial numbers beginning with XA1.

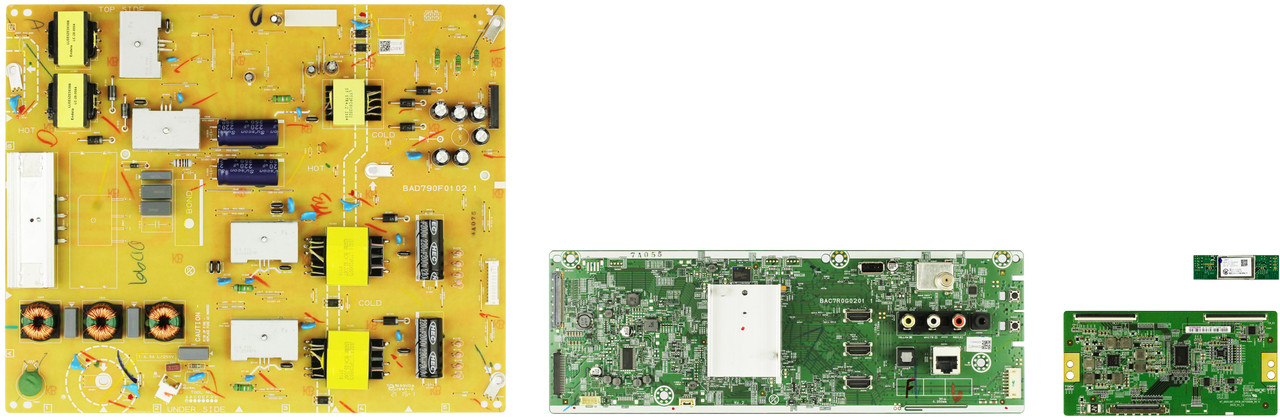

Philips 75PFL4756/F7 (XA1 serial) Complete LED TV Repair Parts Kit
Philips ADD90MMAV001 Main Board
Philips AD794MPW-001 Power Supply
Philips 1-009-498-12 HV750QUBN9K T-Con Board
Philips U9W31UT WiFi

Parts Included

Philips U9W31UT
Sony 1-009-498-12
Philips ADD90MMAV001
Philips AD794MPW-001

Known Models

Brand	Models	Versions
PHILIPS	75PFL4756/F7	XA1

Important:

Compatible with 75PFL4756/F7 TVs with serial

Warranty:

180-Day Warranty

Manufacturer Part Number:

Philips ADD90MMAV001

Manufacturer Part Number:

Philips AD794MPW-001

Manufacturer Part Number:

Philips ADD90MPWT

Manufacturer Part Number:

Philips 1-009-498-12

Manufacturer Part Number:

Philips HV750QUBN9K

Manufacturer Part Number:

Philips U9W31UT

Brands:

PHILIPS

Models:

75PFL4756/F7

What is a TV repair kit?

TV repair kits typically contain every board in your TV (excluding LED strips). If you’re unsure of your diagnosis, you can order this kit and replace all of the boards in your TV.

Which symptoms does a TV repair kit fix in a TV?

• A TV repair kit can fix most symptoms in your TV, from no power to no video or audio to WiFi issues.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a TV repair kit?

It's easy! Once you match the part numbers on your boards with the part numbers listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the boards.
