ONN 100012586 TV Repair Parts Kit -Version 16

SKU:
sj-KIT-100012586-K16
$35.99
Condition:
New
$35.99
180-Day Warranty
Ships same business day if ordered before 4pm CT!
We highly recommend matching your part number. Learn more

❄ HOLIDAY SALE! SAVE 10% WITH THE CODE SJHOLIDAY24 ❄

These products also work for this item

 down facing arrow

These products
also work for
this item

right facing arrow
ONN CH1130D-1MA-600B Power Supply / LED Board

ONN CH1130D-1MA-600B Power Supply / LED Board

SKU: sj-CH1130D-1MA-600B

$21.60
Ships same business day if ordered before 4pm CT!
15 Available
ONN 850310725 N22051-CH Main Board for 100012585

ONN 850310725 N22051-CH Main Board for 100012585

SKU: sj-850310725

$19.20
Ships same business day if ordered before 4pm CT!
10 Available
PLEASE NOTE: There are several versions of this TV model. Please match the boards shown to the originals in your TV before ordering.

Sharp Hisense 950037350 Wi-Fi Module / Wireless Adapter
Onn CH1130D-1MA-600B Power Supply
Onn 850310725 N23004-CH Main Board
Onn JUC7.820.00299247-55-INCH T-Con Board

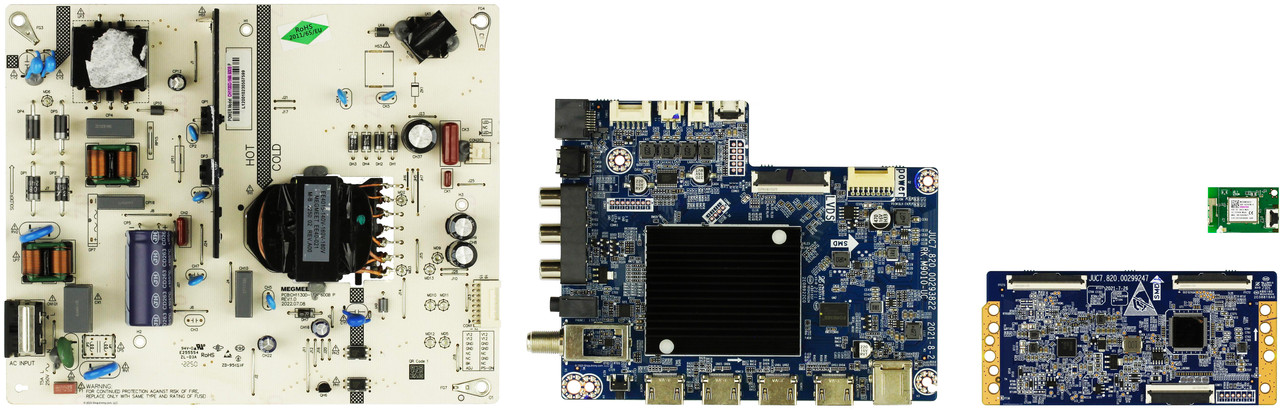

Parts Included

  • RCA 950037350 WC5EM2601F Wi-Fi Wifi Wireless LAN Module (sj-950037350)
  • ONN 850310725 N22051-CH Main Board for 100012585 (sj-850310725)
  • ONN CH1130D-1MA-600B Power Supply / LED Board (sj-CH1130D-1MA-600B)
  • RCA JUC7.820.00299247 T-Con Board (55-inch models ONLY) (sj-JUC7.820.00299247-55-INCH)

Known Models

BrandModelsVersions
ONN100012586
Important:
PLEASE NOTE: There are several versions of this TV model. Please match the boards shown to the originals in your TV before ordering.
Part Number:
KIT-100012586-K16
Warranty:
180-Day Warranty
Brands:
onn
Manufacturer Part Number 1:
ONN 850310725|ONN N23004-CH
Manufacturer Part Number 2:
ONN CH1130D-1MA-600B |ONN JUC7.820.00299247-55-INCH
Manufacturer Part Number 3:
ONN 950037350|ONN WC5EM2601F
Models:
100012586
Part Type:
Complete Parts Kit
Part Usage:
LED/LCD

What is a TV repair kit?

TV repair kits typically contain every board in your TV (excluding LED strips). If you’re unsure of your diagnosis, you can order this kit and replace all of the boards in your TV.

Which symptoms does a TV repair kit fix in a TV?

•  A TV repair kit can fix most symptoms in your TV, from no power to no video or audio to WiFi issues.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a TV repair kit?

It's easy! Once you match the part numbers on your boards with the part numbers listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the boards.
