LG/Sanyo/TCL 34.29110.019 (TT5461B03-2-C-1) T-Con Board

SKU:
sj-34.29110.019
Was
$24.51
(You save $9.32)
$15.19
Was
$24.51
(You save $9.32)
$15.19
180-Day Warranty
Ships same business day if ordered before 4pm CT!
We highly recommend matching your part number. Learn more

❄ HOLIDAY SALE! SAVE 10% WITH THE CODE SJHOLIDAY24 ❄

These products also work for this item

 down facing arrow

These products
also work for
this item

right facing arrow

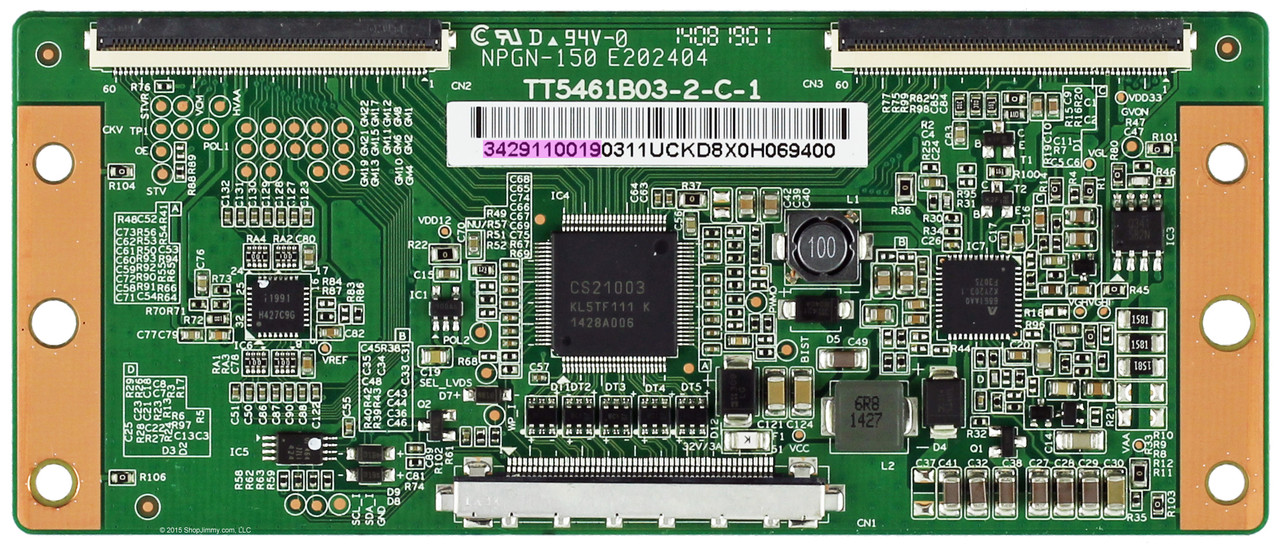

Part number can be found on a sticker.

IMPORTANT: Horizontal lines on the screen are virtually NEVER caused by a bad T-con board. Horizontal lines indicate a defective LCD panel (screen).


Known Models

BrandModelsVersions
HAIER55DR3505
HITACHILE55A6R9
LG55LB5900-UVBUSCLJR
55LB6100-UGBUSCLJR
SANYODP55D44P55D44-08,P55D44-09
TCL55FS370055FS3700TAAA
55FS375055FS3750LBAA,55FS3750TCAA
55FS4610RTBAA
WESTINGHOUSEDWM55F1G1TW-78920-R055A,TW-78902-R055A
WD55FB1530TW-06101-R055A
WD55FX1180TW-02511-R055A
Part Number:
34.29110.019
Warranty:
180-Day Warranty
Harmonized Code:
8529.90.06.00
Models:
55DR3505
Models:
LE55A6R9
Models:
55LB5900-UV
Models:
55LB6100-UG
Models:
DP55D44
Models:
55FS3700
Models:
55FS3750
Models:
55FS4610RTBAA
Models:
DWM55F1G1
Notes:
ShopJimmy recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Part Type:
T-Con
TV Panel Manufacturer:
Heesung
TV Sizes:
55
Board Number:
TT5461B03-2-C-1| ST5461B03-2-C-3
Brands:
westinghouse
Brands:
tcl
Brands:
lg
Brands:
hitachi
Brands:
sanyo
Brands:
haier
Models:
WD55FB1530
Models:
WD55FX1180

Videos

What is a T-con board?

A T-con board — short for “timing control board” or “timing controller” — is found in LED and LCD TVs. This board converts the video signal from the main board and sends it directly to the screen to display the signal in the correct order and at the correct spot on the screen.

Which symptoms does a T-con board fix in a TV?

•  If your TV has no video, then the T-con board could be bad.

•  If your TV only has video on a fourth or half of the screen, then the T-con board could be bad.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a T-con board?

It's easy! Once you match the part number on your T-con board with the part number listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the board.

Make an Offer on this Item!

Please enter your email address and a fair price for this item. We will evaluate your offer within one business day and reply via email. Thanks!

$

Please note that a ShopJimmy Extended Warranty can’t be included in an offer price or added to an accepted/countered offer. Thanks for your understanding.

Need more quantity?

Please add your email and the quantity you need below. While we can’t guarantee that we’ll be able to get our hands on this amount, we’ll do our best and reply to you as soon as we can. Thanks!

We recommend matching the part number on your original part with the part number listed on this page to ensure compatibility.

While matching your model number is a great start, many models use variations of each part and they're not always interchangeable.

We include brief instructions in red text on some listings (also displayed below without the red font). Please look for these instructions to confirm any important info that you'll need to identify on your original part. Additionally, we highlight the part number in our photos.

Please don't hesitate to contact us with any questions. We're here to help!

Part number can be found on a sticker.

IMPORTANT: Horizontal lines on the screen are virtually NEVER caused by a bad T-con board. Horizontal lines indicate a defective LCD panel (screen).
